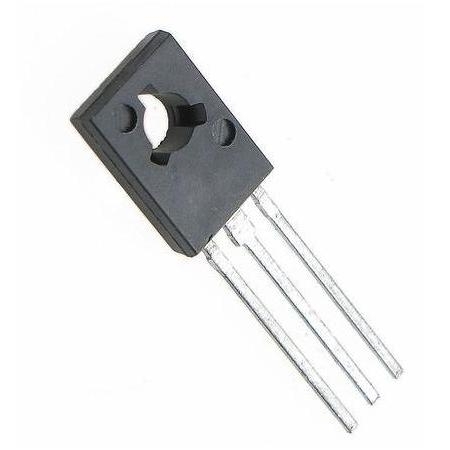

Транзистор DA2688 2SC2688 ( 3DA2688 ) NPN /SILICON NPN TRANSISTOR
Purpose: Color TV chroma output circuits. :Cre ,fT 。 Features: Low Cre, high fT. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO 300 V VCEO 300 V VEBO 5.0 V IC 200 mA PC(Ta=25℃) 1.25 W PC(Tc=25℃) 10 W Tj 150 ℃ Tstg -55…
Features Low Cre, high fT. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO 300 V VCEO 300 V VEBO 5.0 V IC 200 mA PC(Ta=25℃) 1.25 W PC(Tc=25℃) 10 W Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol ICBO IEBO hFE VCE(sat) fT Cre Test condition VCB=200V VEB=5.0V VCE=10V IC=50mA VCE=30V VCB=30V IE=0 IE=0 IC=0 IC=10mA IB=5.0mA IC=10mA f=1.0MHz Min 40 50 Rating Typ 80 Max 0.1 0.1 250 1.5 3.0 Unit μA μA V MHz pF hFE /hFE classifications: N:40～80 M:60～120 L:100～200 K:160～250 2SC2688(3DA2688) …
