MP3 Декодер Плата Bluetooth5.0 Автомобильный MP3-Плеер USB Запись Громкой Связи Модуль FM AUX Радио Питание От 5 — 18 Вольт 2*3 Вт Усилитель

234.2

With call power amplifier 2x3W

Support Bluetooth 5.0

6W power amplifier + (no) color screen + call

DC 5V / 12V

size: 107*25*35MM

В наличии

Артикул: 4631 Категория:

Описание

Feature:

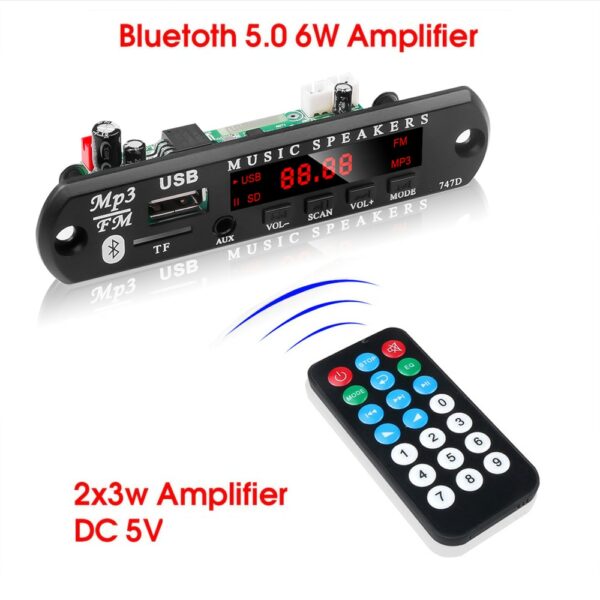

With call power amplifier 2x3W

Support Bluetooth 5.0

6W power amplifier + (no) color screen + call

DC 6- 12V

size: 107*25*35MM

With 2 speakers, the current needs to be 2.5A or more, the voltage 6V-12V can be used

Support USB, SD (TF), AUX, FM radio function

USB: Connect U disk (maximum support 32GB,not included)

LED color screen: digital screen display, display red

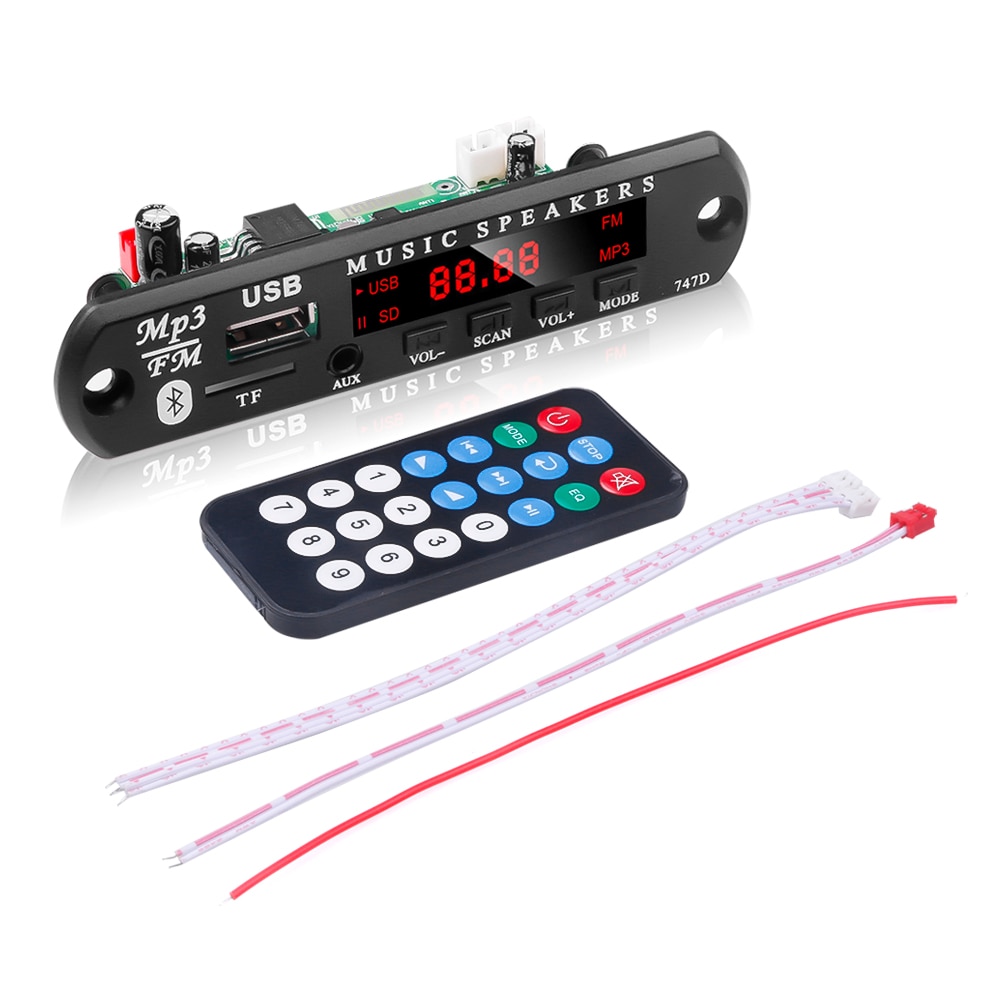

Infrared receiver module

TF: Connect TF memory card (maximum support 32GB,not included)

AUX: Audio input interface

VOL-: Short press is to select the previous song; long press is to decrease the volume

PLAY/PAUSE: Short press is to switch between pause and play; long press is to radio FM automatic station

VOL+: Short press is to select the next song; long press is to increase the volume

MODE: USB/TF/FM/LINE IN/BLUETOOTH sound switching

Main control IC: AC6926

Bluetooth IC: AC6926 Bluetooth version is 5.0

Music format: MP3 / WMA / WAV / FLAC / APE lossless format music

Power: 2*3W, connect 2 * 3W speakers

Radio FM frequency: 87.5-107.5 MHZ

Support function introduction: support MP3/USB/TF/LINE IN/FM/BLUETOOTH/Remote control connection/DC 12V

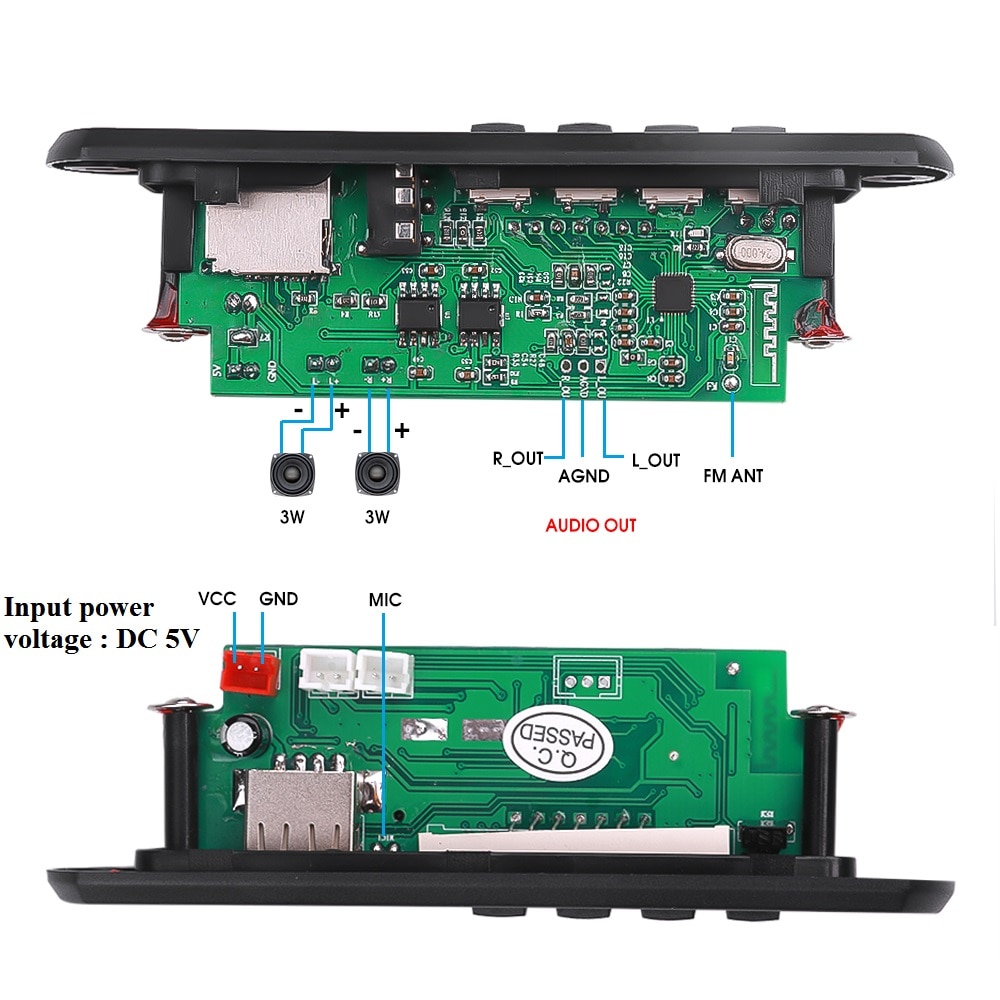

About the structure: Panel size: 107 * 25 MM, the two corners of the panel and the position of the screw holes, and then the lid cover surface, the depth of the board is 32 MM

Note:

12V : 5V-12V power supply can be used
